Wood Wheel Loader

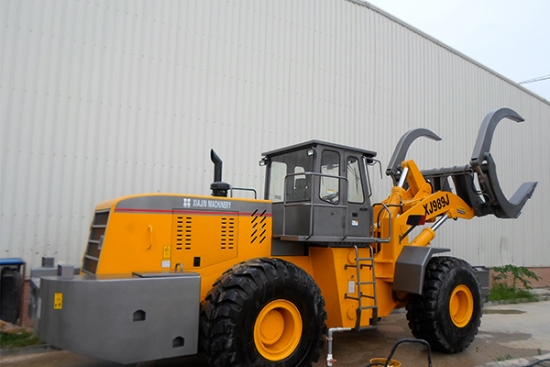

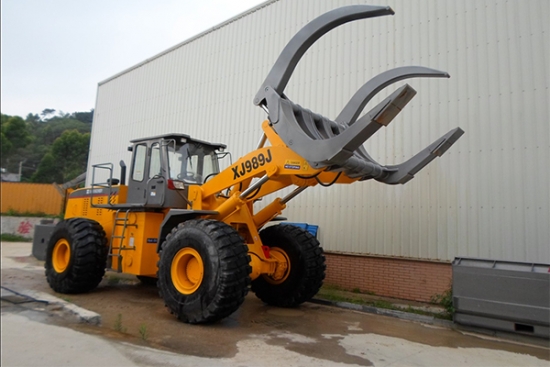

Wood wheel loader XJ989J.

Max.load in Max.lifting height 18tons.

  • Item NO.:

    XJ989J
  • Product Details
  • Configration

Whole machine

Equipped with professional air-condition, single handle pilot control system, electronic control gearshift device to ensure  easy operation, Independent transmission oil and Hyd. Oil radiator improve the system stability.


Engine

Top-grade Diesel 178kw WEICHAI engine with intercooler system, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.



Oil pipe

oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. More reliable and durable.



Transmission and torque converter

Adopt CAT technology fixed shaft power shift transmission system, compact structure, long service life of gear. Make the whole machine more flexible, special for the harsh quarries’ working environment.

Engine


Model                                                                  WEICHAI

Rated Power                                                       178kw


Overall dimension

Overall length                                                       9790mm

Overall width                                                        3000mm

Overall height                                                       3560mm

Performance parameters of entire machine

Operating weight                                                  32.9T

Max.load in Max.lifting height                              —

Rated load                                                             18T

Turning angle                                                         32°

Turning radius                                                       8960mm

Wheel base                                                           4200mm

Tread                                                                     2300mm

Min.ground clearance                                           450mm

Haul location height                                               300mm

Climbing gradient                                                  20°

Fuel tank capacity                                                 380L

Hydraulic fuel tank capacity                                  380L

Dimensions of fork

L x W x H                                                                1500 x 280 x 150 mm

Distance of fork                                                     1620mm

Specification of tire

Front wheel                                                           26.5R25

Rear wheel                                                           26.5-25-28PR


Send a Message
If you have any problem when using the website or our products, please write down your comments or suggestions, we will answer your questions as soon as possible!Thank you for your attention!
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

RELATED PRODUCTS

Highly customized products to meet your special needs, strictly product quality control is our requirement .

5T wheel loader

China Log-Fork Loader

Wood wheel loader XJ953J. Max.load in Max.lifting height 5tons.

grasping wood machine

China Wood Loader

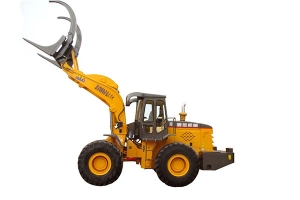

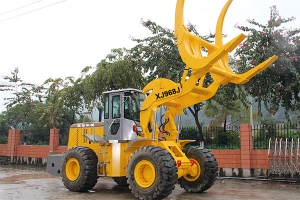

Wood wheel loader XJ968J. Max.load in Max.lifting height 13tons.
