China Log-Fork Loader

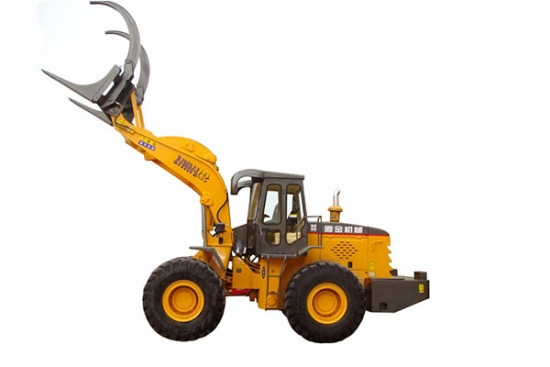

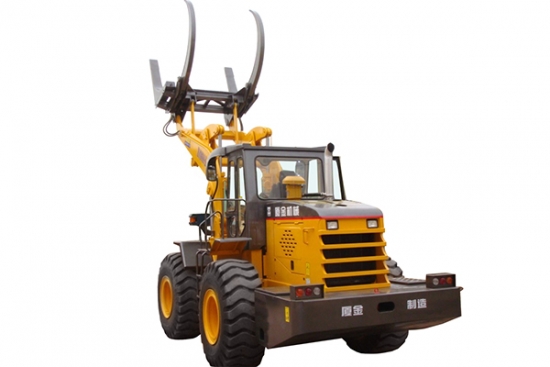

Wood wheel loader XJ953J.

Max.load in Max.lifting height 5tons.


  • Item NO.:

    XJ953J
  • Product Details
  • Configration

1. Full-hydraulic steering system makes it operated easily and improve efficiency;

2. Strengthen and bigger drive axle (Q axle);

3. Low fuel-consuming, high-quality Turbo Charge Engine has good power performance and big torque reserve if you use WEICHAI WD10G220E1;

4. Double-turbo hydraulic torque-converter together with dynamic planet-type gear box enable a wide and high efficient range and facilitate the gear shifting;

5. Four-wheel, dual-line and pliers disc braking system ensures safer and more reliable operation;

Engine


Model                                                                   WEICHAI

Rated Power                                                       162kw


Overall dimensions

Overall length                                                     7410mm

Overall width                                                      2990mm

Overall height                                                     3390mm

Dumping height                                                  3030mm

Dumping reach                                                   1300mm

Performance parameters of entire machine

Operating weight                                                  16.6t

Bucket capacity                                                    2.7m³

Rated load                                                            5t

Turning angle                                                       35°

Min.turning radius                                                 6450mm

Number of shifts(forward/reverse)                        2/1

Fuel tank capacity                                                220L

Hydraulic fuel tank capacity                                 200L

Lifting time                                                            ≤6.8s

Total cycling time                                                 ≤12.3s

Travel speed

Forward gear I                                                     11.5km/h

Forward gear II                                                    38km/h

Reverse gear I                                                     16km/h

Specification of tire

Tire type                                                               23.5-25
