XJ955-9E block fork loader

The operate weight 18tons.

The Rated load:9tons

Engine:WEICHAI or CUMMINS

  • Item NO.:

    XJ955-9E
  • Product Details
  • Configration

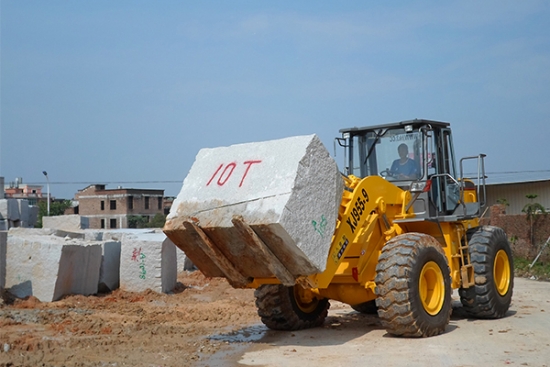

Stone forklift loader XJ955-9E.

Whole machine

XJ955-9 forklift loader designed base on the 5Tons capacity wheel loader.It can have the function of wheel loader and 9Ton capacity forklift loader because the upgrade of the frame,Hydraulic system,brake system,tir etc.



Engine

Top-grade Diesel Engine (WEICHAI engine)162kw with multinomial patents,synthesize multilevel compound air filter technology,high efficency low noise and cooling technology,especially for using in dusty environment.



Drive axle

Bigger and enhanced drive axles are all bigger.With special material brake pads and expanded the radius of the brake in order to improve the brake ability.



Engine


Model                                                                  WEICHAI

Rated Power                                                       162kw


Overall dimension

Overall length                                                       7710mm

Overall width                                                        2990mm

Overall height                                                       3390mm

Performance parameters of entire machine

Operating weight                                                 18.2T

Max.load in Max.lifting height                               9T / 4200mm

Rated load                                                           9T / 4200mm

Turning angle                                                         35°

Turning radius                                                       6100mm

Wheel base                                                           2810mm

Tread                                                                    2295mm

Min.ground clearance                                           450mm

Haul location height                                               300mm

Climbing gradient                                                  20°

Fuel tank capacity                                                 220L

Hydraulic fuel tank capacity                                  200L

Dimensions of fork

L x W x H                                                               1350 x 160 x 100 mm

Distance of fork                                                     1037mm

Specification of tire

Front wheel                                                             23.5-25-24PR

Rear wheel                                                             23.5-25-24PR
