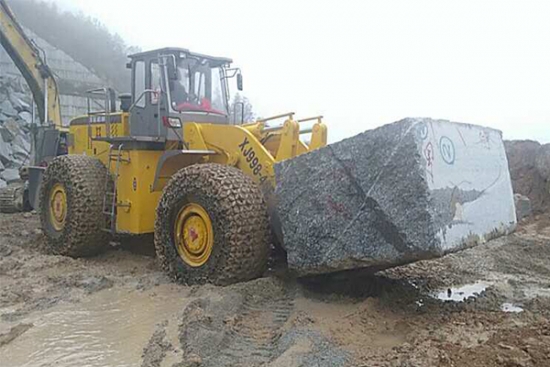

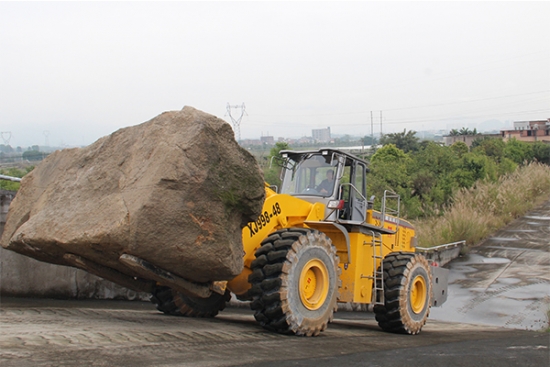

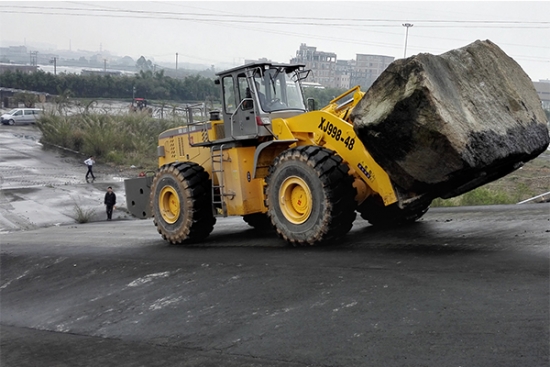

XJ998-48E Stone block Forklift loader

Operate weight:51000kg

Rated load:48tons

Engine Rated power: WEICHAI 276kw or Cummins 400hp

  • Item NO.:

  • Product Details
  • Configration

Whole machine

Equipped with professional air-condition, single handle pilot control system, electronic control gearshift device to ensure  easy operation, Independent transmission oil and Hyd. Oil radiator improve the system stability.



Top-grade Diesel 264kw WEICHAI engine with intercooler system, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.



Bigger and enhanced drive axles special for forklift loaders. The bearing, gears, hub and supporting axle are all bigger. Reliable drive system,  larger supporting weight. Using special heavy vehicle brake material, every axle is with six sets of brake caliper, effectively ensuring the braking effect.


Oil pipe

oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. More reliable and durable.



Special design , thickening steel plate, the thickness of lift-arm and hinged panels reaches 80mm, Bigger hinged pin and hinged bearing to fully improve the carrying capacity. Lift-arm increases the lower beam structure which to improve torsional performance, the operating weight reaches 50000kg and the width reaches 3520mm to effectively improve the lateral stability of the whole machine. Double rocker arms solve problem which the stone and rocker arm collide, meanwhile also make the driver’s sight wider



Model                                                                   WEICHAI

Rated Power                                                       264kw

Overall dimension

Overall length                                                      10200mm

Overall width                                                        3520mm

Overall height                                                      3880mm

Performance parameters of entire machine

Operating weight                                                  50T

Max.load in Max.lifting height                              41T / 3180mm

Rated load                                                             48T / 1800mm

Turning angle                                                         32°

Turning radius                                                       10050mm

Wheel base                                                           4425mm

Tread                                                                     2650mm

Min.ground clearance                                           450mm

Haul location height                                               ≤300mm

Climbing gradient                                                  20°

Fuel tank capacity                                                 420L

Hydraulic fuel tank capacity                                  380L

Dimensions of fork

L x W x H                                                                1600 x 350 x 135 mm

Distance of fork                                                       ≤1740mm

Specification of tire

Tire type                                                                  29.5R29钢丝胎
