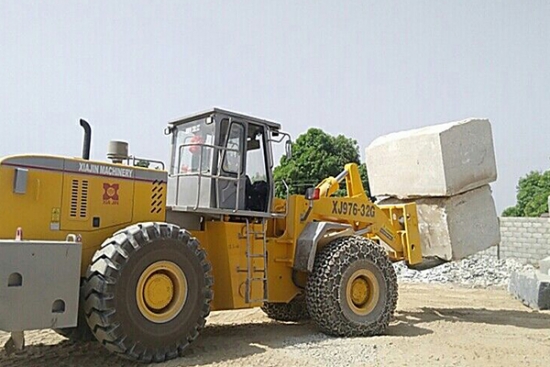

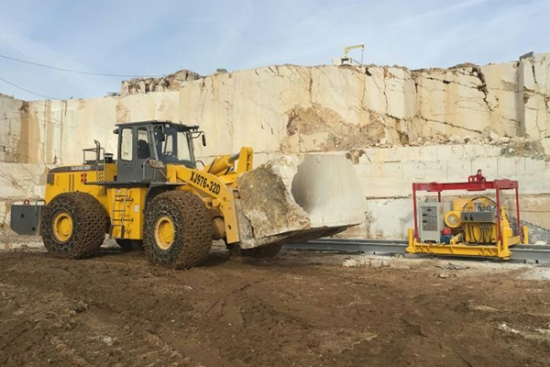

XJ976-32E 32tons Marble forklift loader

Operate weight :33.5T.

Rated load:32T

Engine:WEICHAI 199KW or CUMMINS

  • Item NO.:

    XJ976-32E
  • Product Details
  • Configration

Whole machine

Equipped with professional air-condition, single handle pilot control system, electronic control gearshift device to ensure  easy operation, Independent transmission oil and Hyd. Oil radiator improve the system stability.


Engine

Top-grade Diesel 199kw WEICHAI engine with intercooler system, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.



Axle

XIAJIN MACHINERY SOMA forklift loader axle.Larger supporting weight. auto-brake when braking.perfect braking performance when running. Safe braking power reaches above to 86000N.m effectively realize reliable braking effect. It is big revolution in reliable technology and safe technology of forklift loader, it is double guarantee of efficiency and security.



Oil pipe

oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. More reliable and durable.



Transmission and torque converter

Adopt CAT technology fixed shaft power shift transmission system, compact structure, long service life of gear. Make the whole machine more flexible, special for the harsh quarries’ working environment.

Engine


Model                                                                   WEICHAI

Rated Power                                                       199kw


Overall dimension

Overall length                                                       9790mm

Overall width                                                        3260mm

Overall height                                                       3680mm

Performance parameters of entire machine

Operating weight                                                  34.5T

Max.load in Max.lifting height                              24.6T / 3530mm

Rated load                                                             32T / 1800mm

Turning angle                                                         32°

Turning radius                                                       9000mm

Wheel base                                                           4200mm

Tread                                                                     2400mm

Min.ground clearance                                           510mm

Haul location height                                               300mm

Climbing gradient                                                  20°

Fuel tank capacity                                                 380L

Hydraulic fuel tank capacity                                  380L

Dimensions of fork

L x W x H                                                                1500 x 300 x 150 mm

Distance of fork                                                     1620mm

Specification of tire

Tire type                                                                  29.5R25
