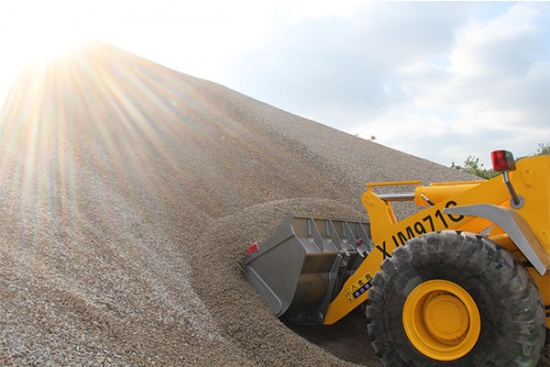

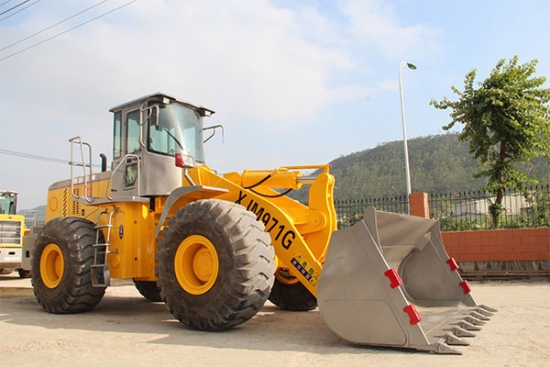

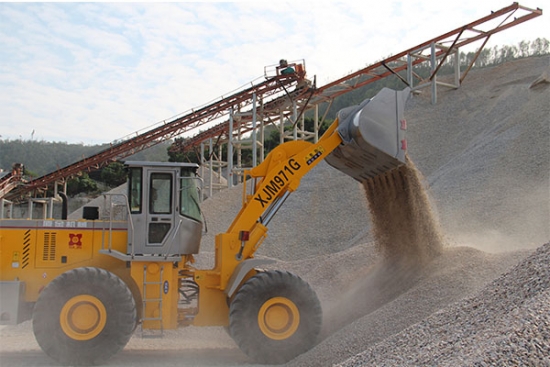

7 Tons Wheel Loader

7 tons wheel loader(XJM971G) products, energy saving, efficient, reliable, comfortable,convenient maintenance, widely used in ports, mines, logistics enterprises etc.
  • Item NO.:

    XJM971G
  • Product Details
  • Configration

XJM971G is the latest 7 ton wheelloader products, energy saving, efficient, reliable, comfortable, convenientmaintenance, widely used in ports, mines, logistics enterprises etc.

Depth optimized drive system,international leading quality transmission and drive axle, more effective andmore reliable.

Short wheelbase design,  Small turning radius,  Efficient and flexible.

Flow amplified steering, singlehandle pilot control, simple operation.

The cab has super space with quiet soundconfiguration. All the control element at your fingertips to create the bestoperating environment.

A single large heat sink is used tosolve the operation heat problem in all kinds of bad environment.

It can be equipped with a variety ofmodels working device to meet the needs of different jobs.


Engine


Model                                                                   WEICHAI

Rated Power                                                        178kw


Overall dimensions

Overall length                                                     8810mm

Overall width                                                       3030mm

Overall height                                                     3780mm

Dumping height                                                  3460mm

Dumping reach                                                   1300mm

Performance parameters of entire machine

Operating weight                                                  22t

Bucket capacity                                                    4m³

Rated load                                                            7t

Turning angle                                                       30°

Min.turning radius                                                 7400mm

Number of shifts(forward/reverse)                         2/1

Fuel tank capacity                                                230L

Hydraulic fuel tank capacity                                  230L

Lifting time                                                            ≤6s

Total cycling time                                                  ≤12s

Travel speed

Forward gear I                                                       11.5km/h

Forward gear II                                                      38km/h

Reverse gear I                                                      16km/h

Specification of tire

Tire type                                                                26.5-25-28PR
